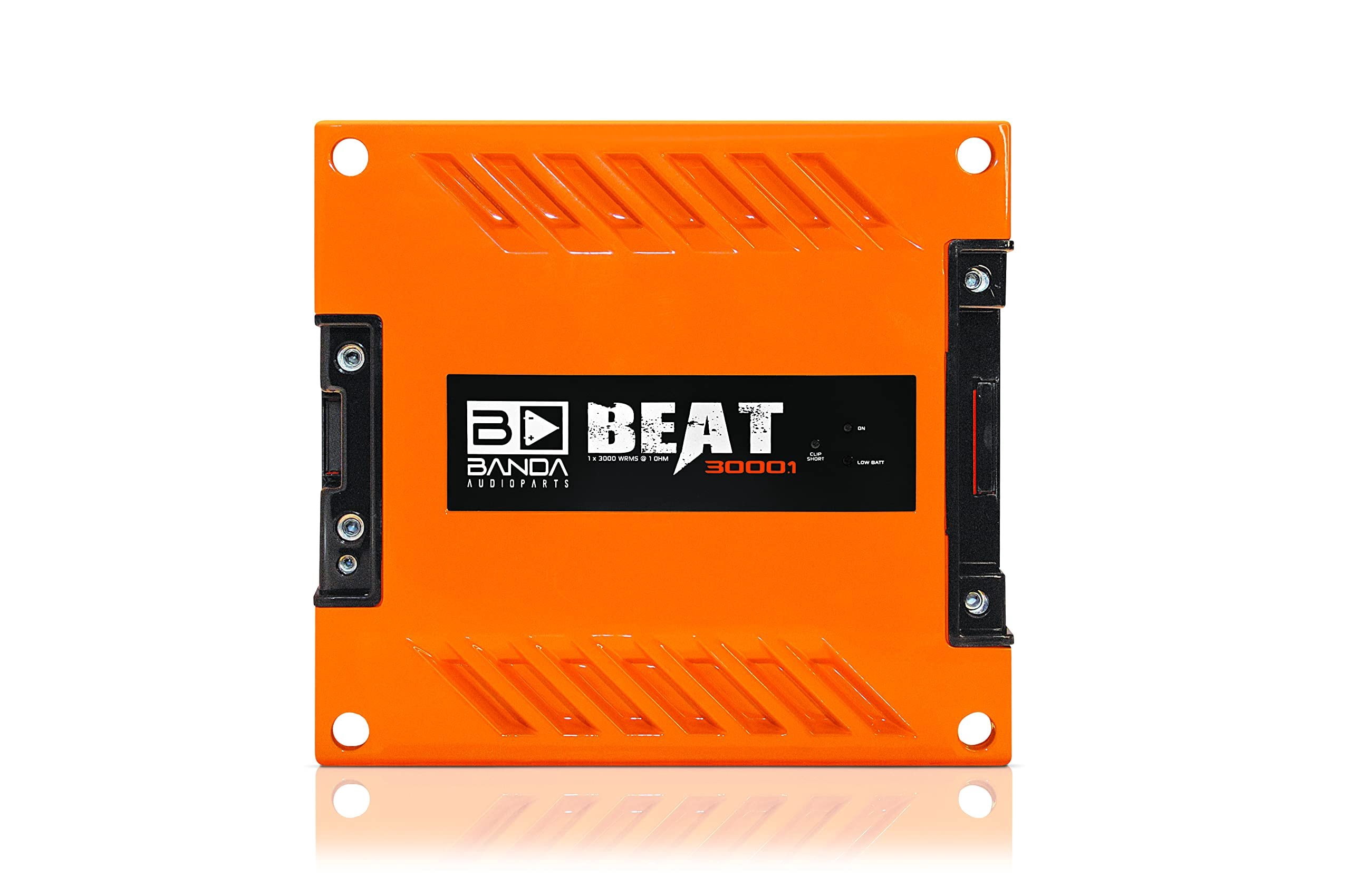

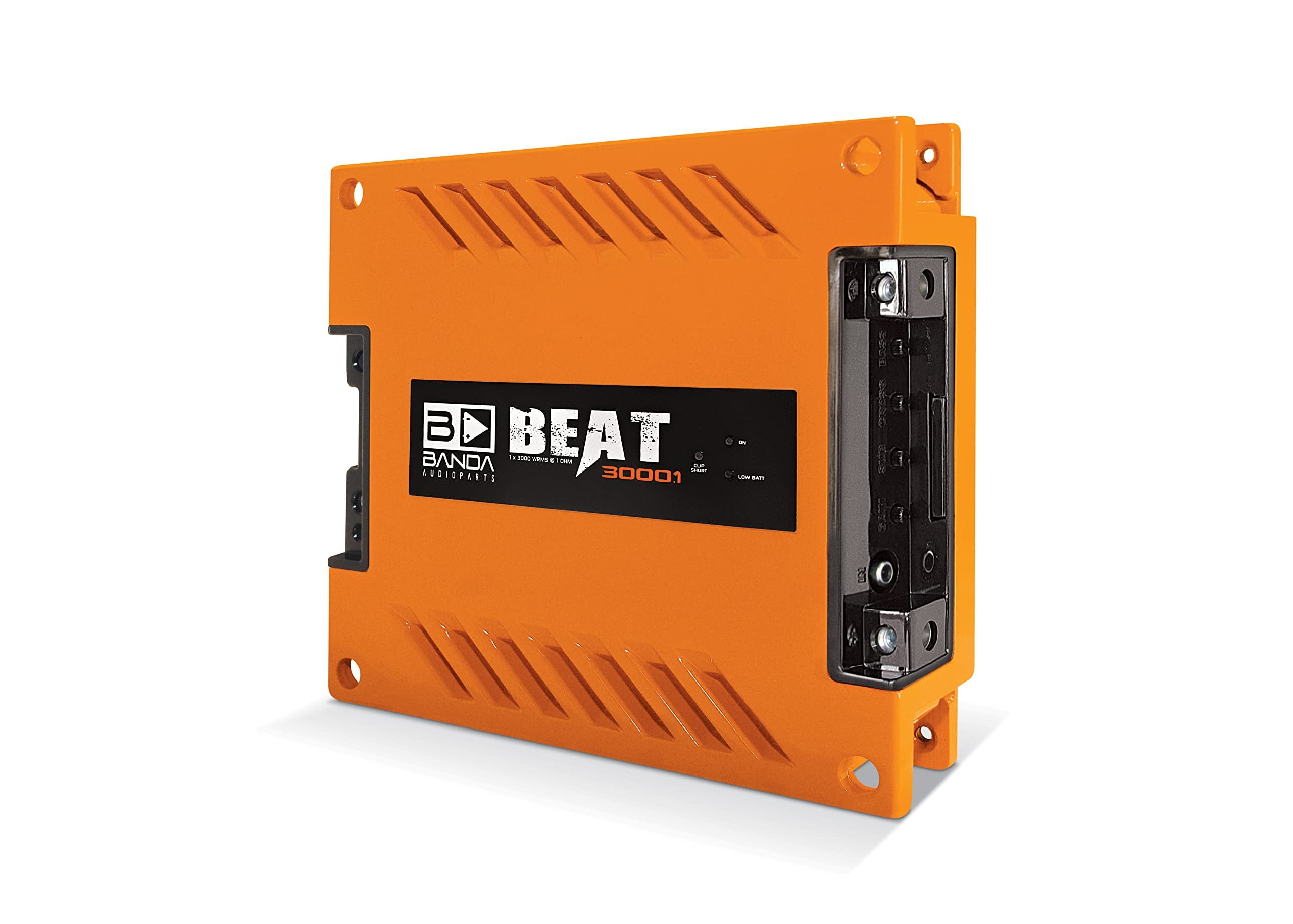

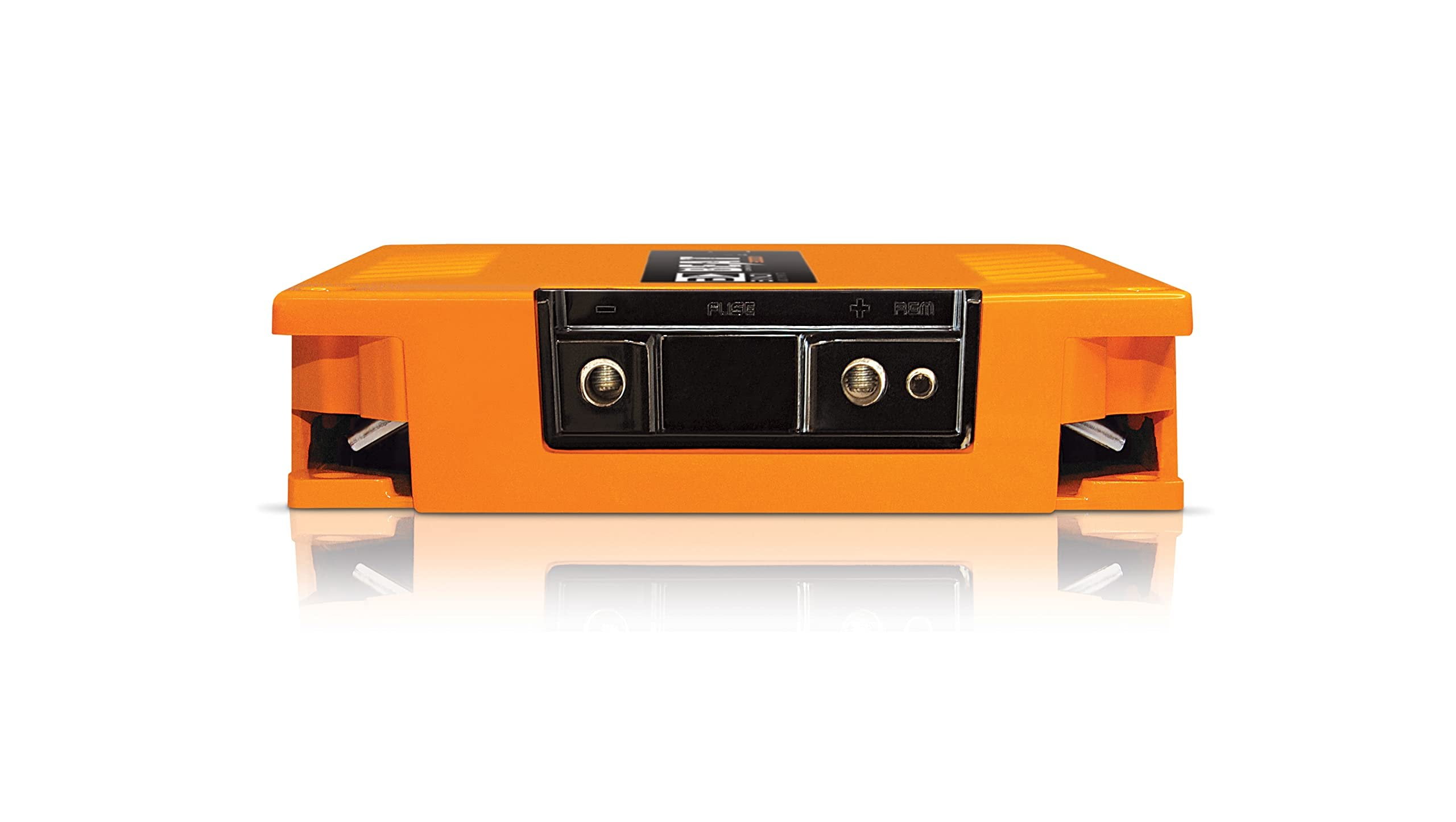

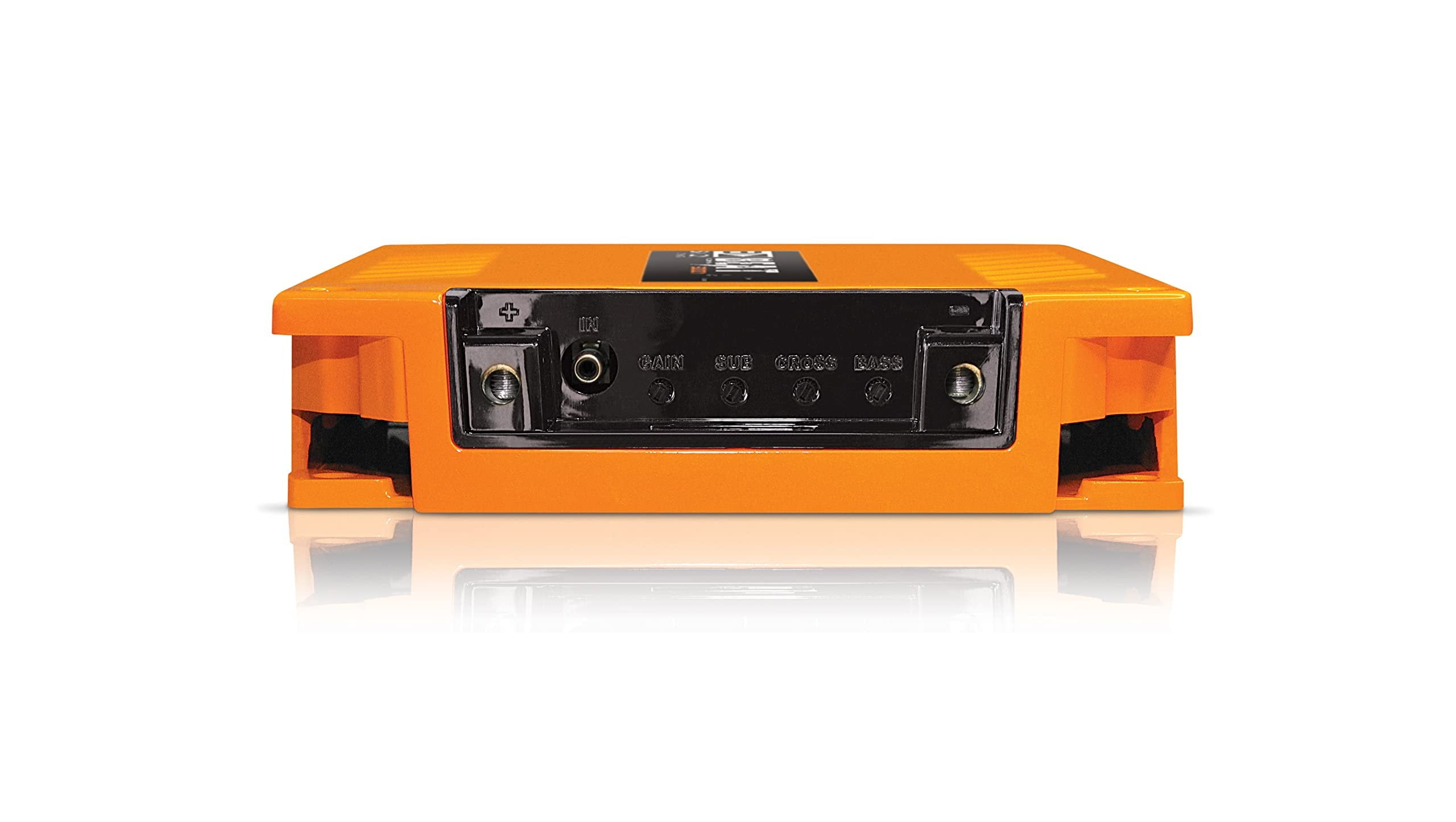

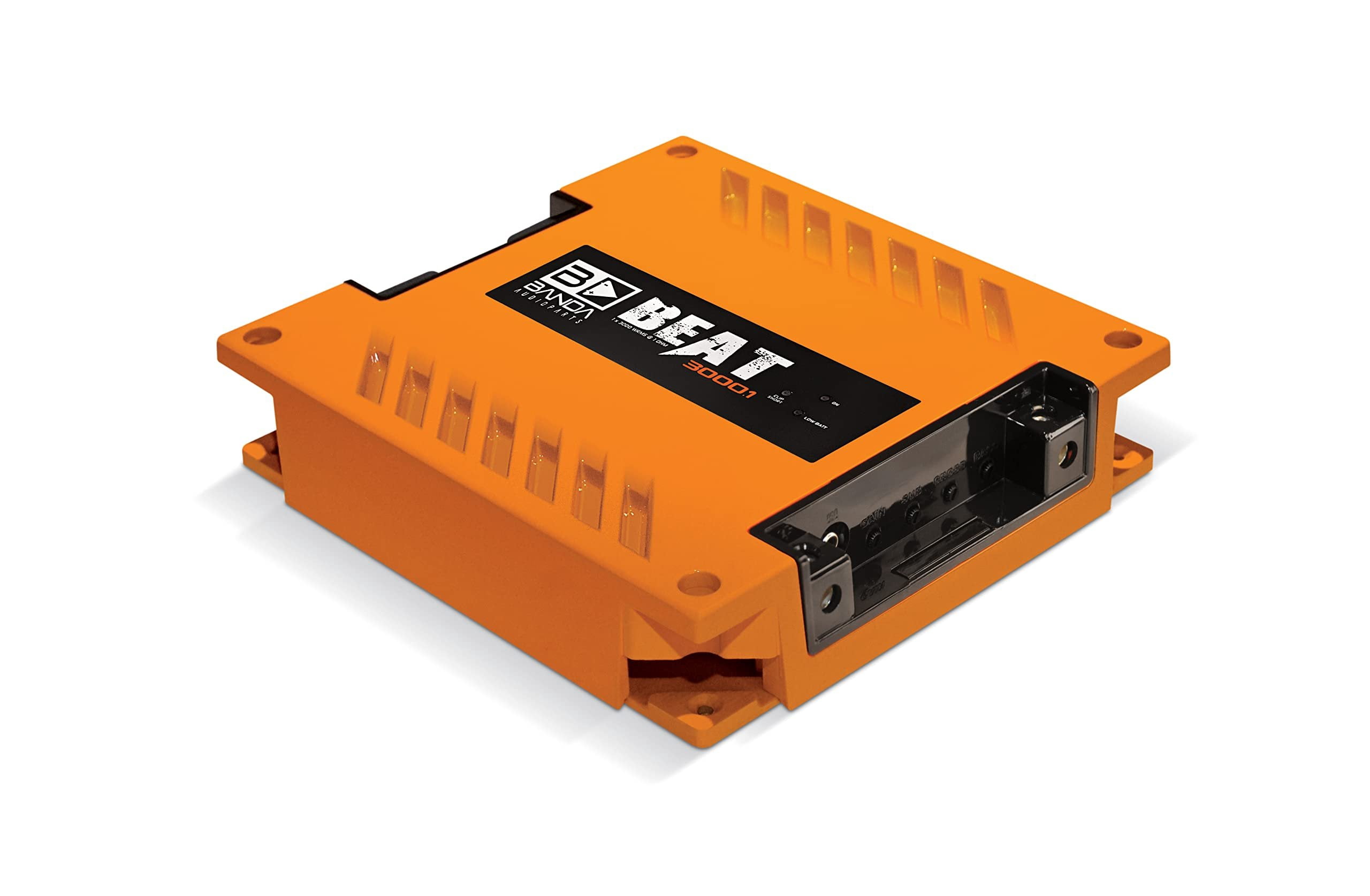

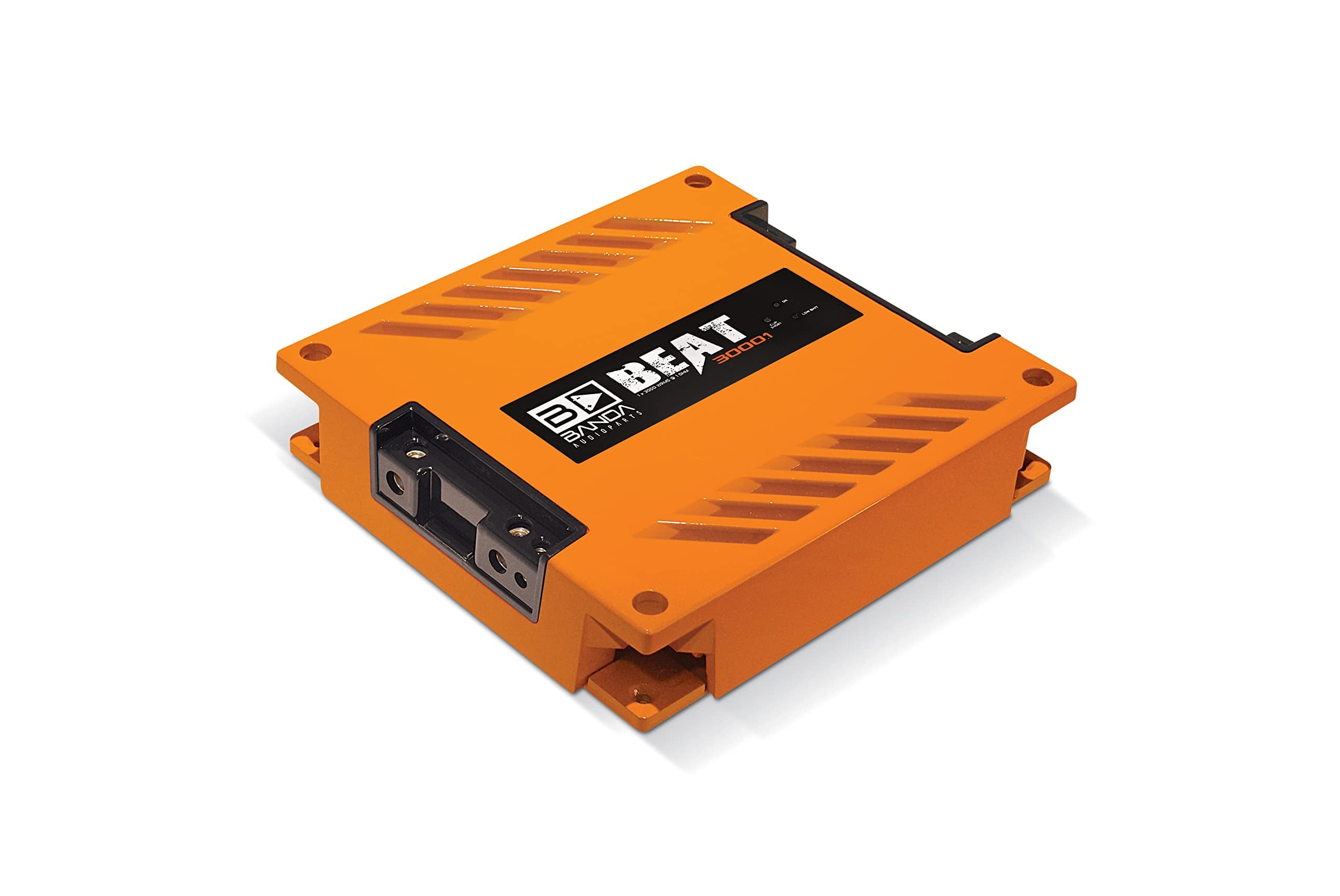

Banda 3000W 1 Ohm Mono Bass Vehicle Audio Amplifier, Orange
Product details
| Management number | 238601328 | Release Date | 2026/07/11 | List Price | US$120.00 | Model Number | 238601328 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>1-Ch. Vehicle Audio Bass Amplifier - 3000W High-Powered Mono Bass Amplifier w/Subsonic Filter & Low Pass Filter Stable at 1 ohm, LED Indicators, Sound Specialization, Orange - BEAT3000.1ORANGE</p>
Banda 3000W 1 Ohm Mono Bass Vehicle Audio Amplifier, Orange
- Class D vehicle audio amplifier with total power output of 3600 WRMS at 1 Ohm
- 2400 WRMS at 2 Ohms, 3000 WRMS at 12.6 1 Ohm, and 1800 WRMS at 12.6 2 Ohms
- Efficiency ratings of 82% at 2 Ohms and 75% at 1 Ohm
- Blue LED indicator for source and powered amplifier status
- Red LED indicator for output distortion clipping
- Constant shorting and thermal protection indicator
- Yellow LED indicator for below specified voltage
- Input voltage range of 9 to 15V with an input impedance of 100K Ohms
- THD + Noise of less than 1% and input sensitivity ranging from 110mV to 8V
- Signal to noise ratio of 82dB for clear sound
- RCA connectors for secure, distortion-free sound connection between amplifier and speakers
- Recommended fuse rating of 150A with a current draw of 2A at rest
- Average current draw of 320A for sinusoidal signals and 160A for music
- Power wire gauge of 21mm/4 AWG and speaker wire gauge of 2 x 4mm/2 x 11 AWG
- Dimensions: 12.3'' x 10.6'' x 2.4'' inches
| Brand | Banda Audioparts |
|---|---|
| Rms power rating | 3000 W |
| Channels | 1 |
| Impedance | 1 ohm |
| Features | Compact |
| Peak audio power handling | 3000 W |
| Input/output type | Wireless |
| Rec. use | Car Audio |
| Size | 12.3'' x 10.6'' x 2.4'' -inches |
| Color | Orange |
| Rec location | Vehicle |
| Audio output | 3000 W |
| Total harmonic distortion | 1 % |
| Signal-to-noise ratio | 82dB |
| Items included | Audio Amplifier |
| Accessories | RCA connectors |
| Inputs/Outputs | RCA connectors |
| Input/output direction | Input |
| Model | 3K1OHMORANGE |
| Compatibility | Cars |
| Vehicle type | Car |
| Vehicle fitment type | Universal |
| Vehicle model | BANDA |
| Has written warranty | No |
| Has nrtl listing certification | N |
| Assembled product weight | 1 lbs |
| Volts | 15 V |
| Amps | 2 Amps |
